Description
| Model | Duct Section | Std Length | Weight | Temp Resistance |
| ARI-2000 | 44.9 in² | 19.68 ft. | 8.9 lbs./ft. | 360°F Neoprene |
| 480°F Silicone | ||||
| 572°F Viton |

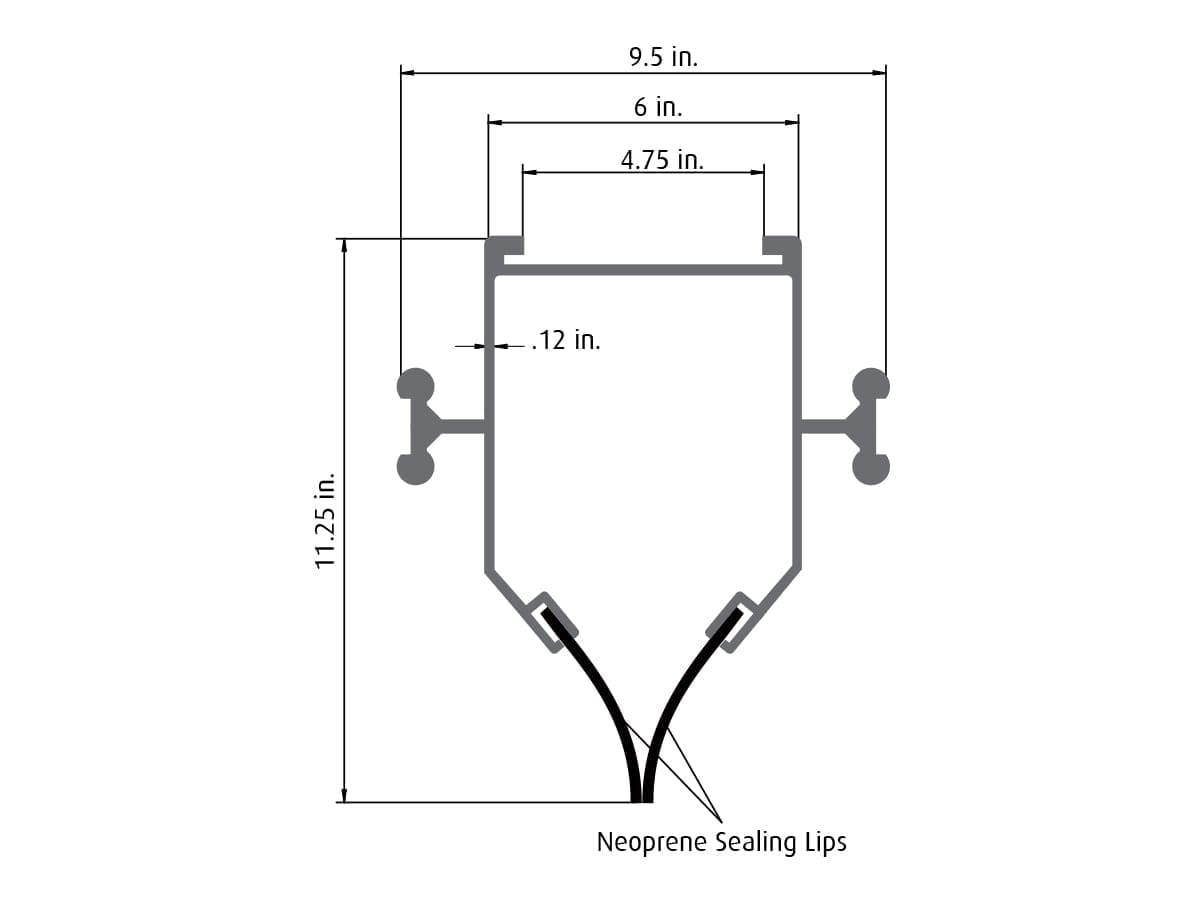

Aluminum Channel Duct ARI-2000
ARI-HETRA’s ARI-2000 Aluminum Channel Duct is a vehicle exhaust extraction monorail system, specially designed for heavy-duty and the highest exhaust output vehicles, that attaches directly to the vehicle exhaust pipe to capture exhaust fumes at their source. The monorail system will be uniquely configured to your shop layout, offering freedom of movement throughout the shop as well as sharing between bays.
Features
- Light-weight extruded aluminum.
- One-piece construction.
- Air-tight, toxin-resistant neoprene sealing lips.
- External double support guides.
- External carriage.
- Hoses are off of the ground and will not be run over.
- Compatible with Welding Fume Extraction Systems.
Options
- Spring Hose Reel.
- Mobile Motorized Hose Reel.
- Mobile Welding Extraction System.
- Silicone sealing lips (480ºF).
- Viton sealing lips (572ºF).
- Crane Interrupt System.
