Waste Oil Drain

WOD-31XL – 31 Gal.

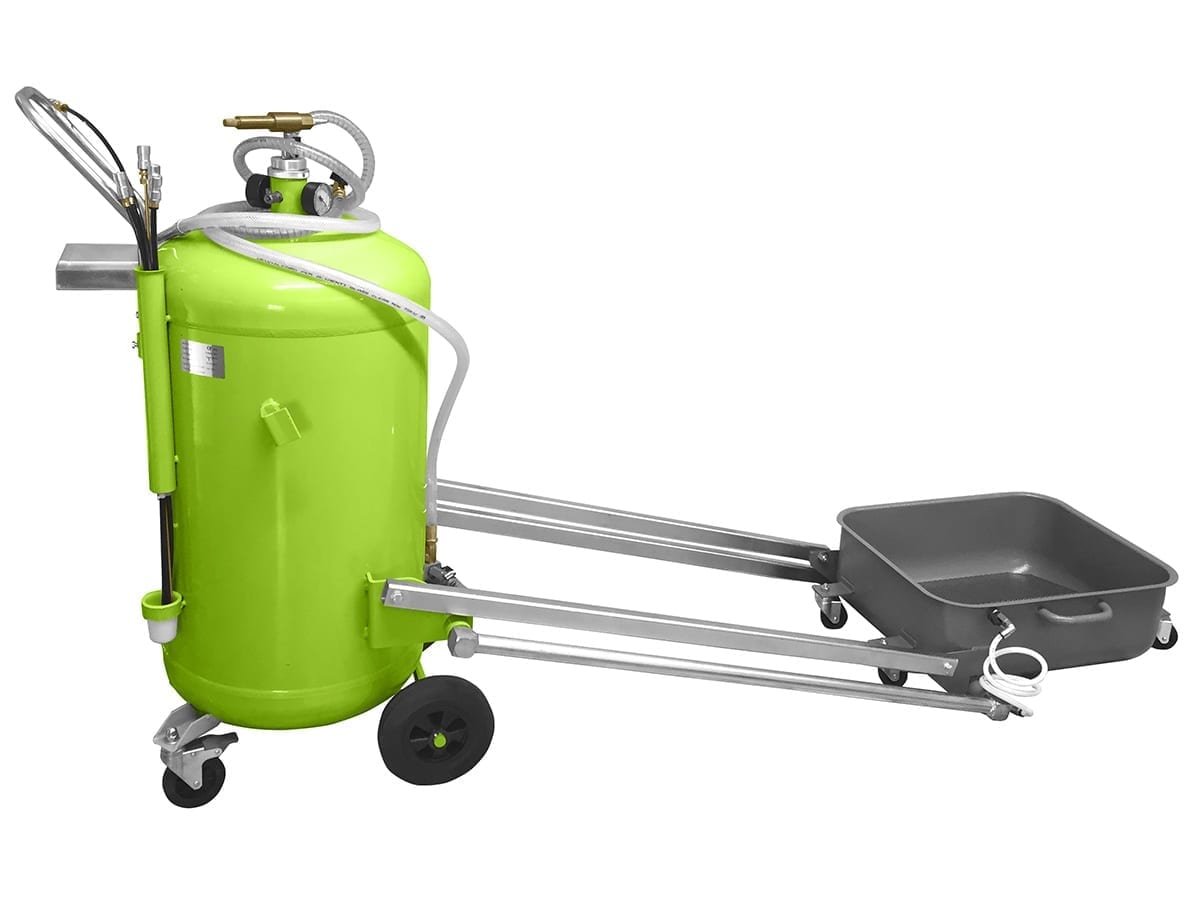

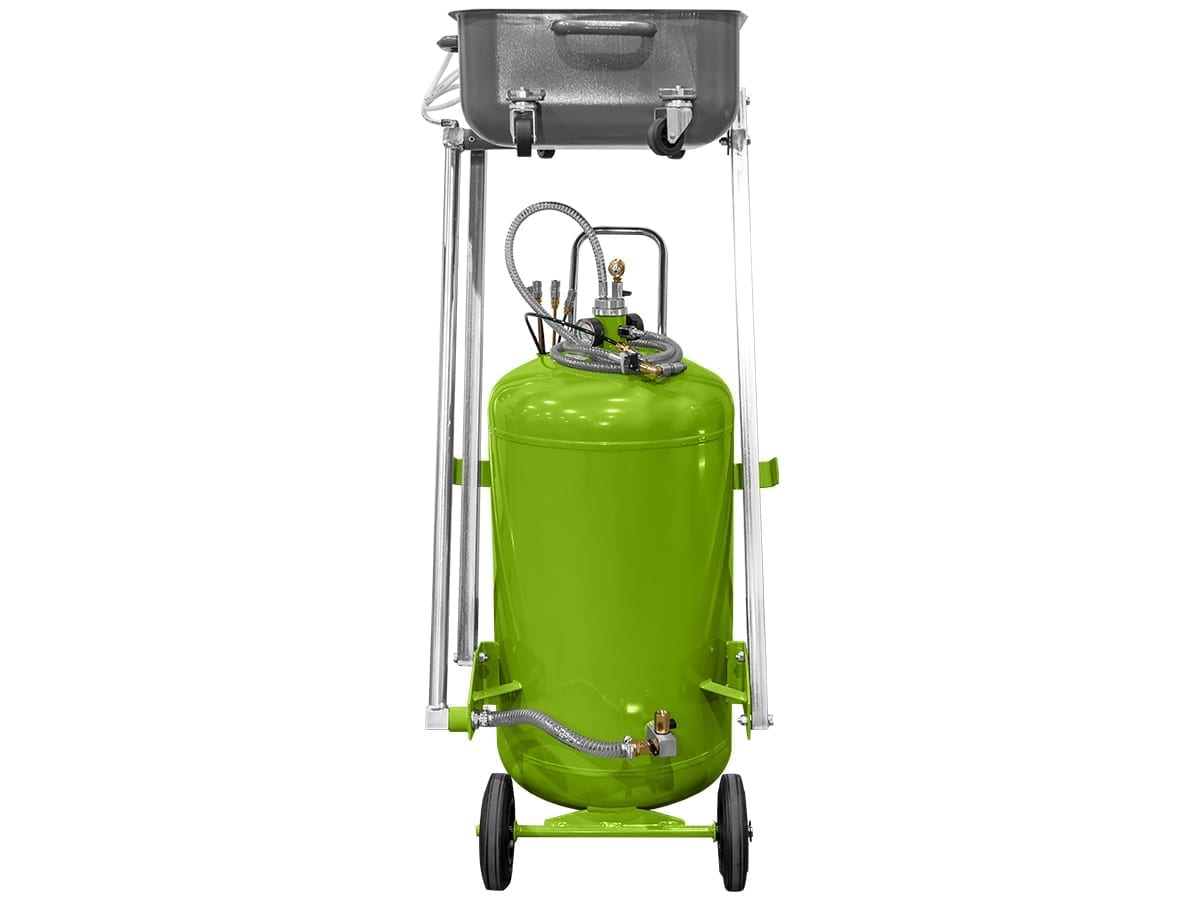

The versatile ARI-HETRA 3-in-1 self-evacuating Waste Oil Drain (Model WOD-31XL) can be used to easily change the transmission and differential oil on most heavy-duty vehicles.

Draining Options

• By gravity, with tank on the floor.

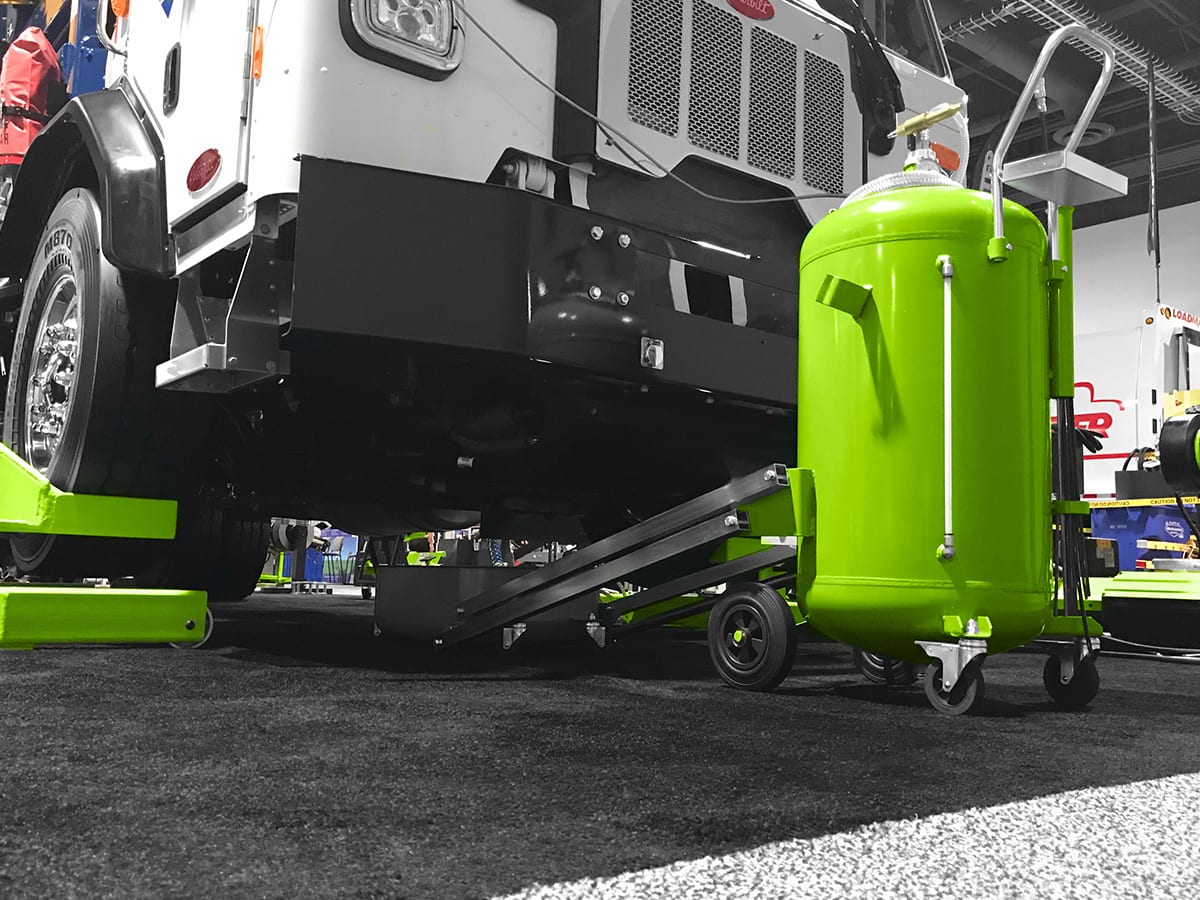

• By gravity (pan raised), with vehicles placed on auto lift or over a pit.
• By suction, with probe inserted directly into the engine.

Features

• Easy to maneuver, simple to use.
• Large 13.5 gal. collection tray.
• Tank is equipped with fill sight tube.
• Suction probes included.
• No pump to wear out or maintain.
• A floating ball check-valve allows oil to enter, but seals the container for evacuation the moment air is connected.

Included Probes

• Probe 5mm dia. x 700mm flexable – part# 1845.1
• Probe 6mm dia. x 700mm flexable – part# 1845.2
• Probe 7mm dia. x 1,000mm flexable – part# 1845.3
• Probe 8mm dia. x 700mm flexable – part# 1845.4
• Probe 5mm dia. x 700mm moldable – part# 1845.5
• Probe 6mm dia. x 700mm moldable – part# 1845.6

Optional Probes

• Probe 7mm dia. x 1,900mm moldable – part# 1845.3A
