Military Floor Jack

WS-1945 – 45,000 lbs.

ARI-HETRA’s Model WS-1945 hydraulic jack is designed to engage the shackle mounts of your heavy-duty military and construction vehicles, allowing you to raise the front and/or rear of your equipment weighing up to 45,000 lbs. Now available on our GSA Schedule (GS-07F-291AA)!

Features

• Twin rams with threaded locking safety collars.
• Air over hydraulic.
• Mechanical safety lock using threaded rams and collars.
• Rapid lift without load.
• Independent lifting ram controls.
• Rams move side to side.
• Retractable wheels.
• Pressure relief valve prevents overloading.
• Handle folds out of the way.

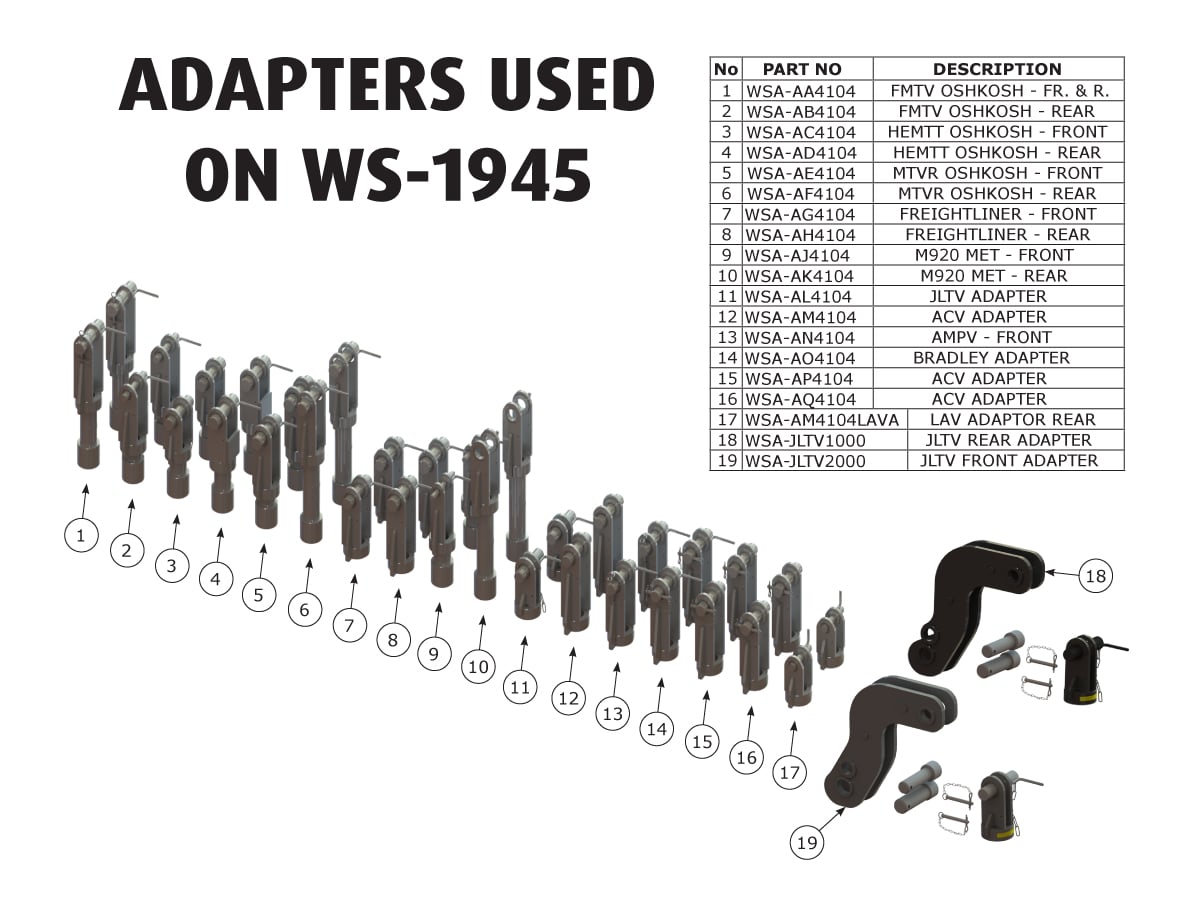

• Numerous shackle adapters available.
• Available in Olive Drab or Desert Sand (extends delivery time).

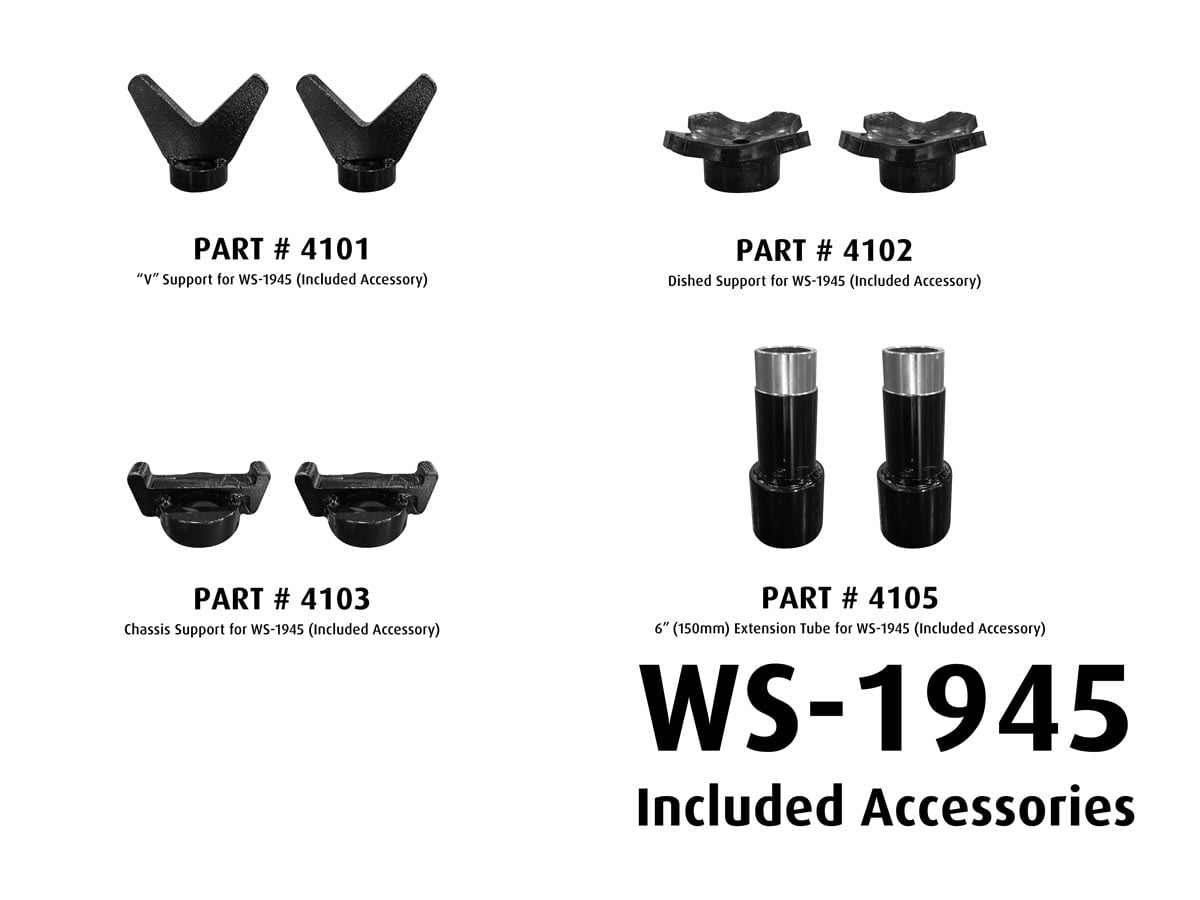

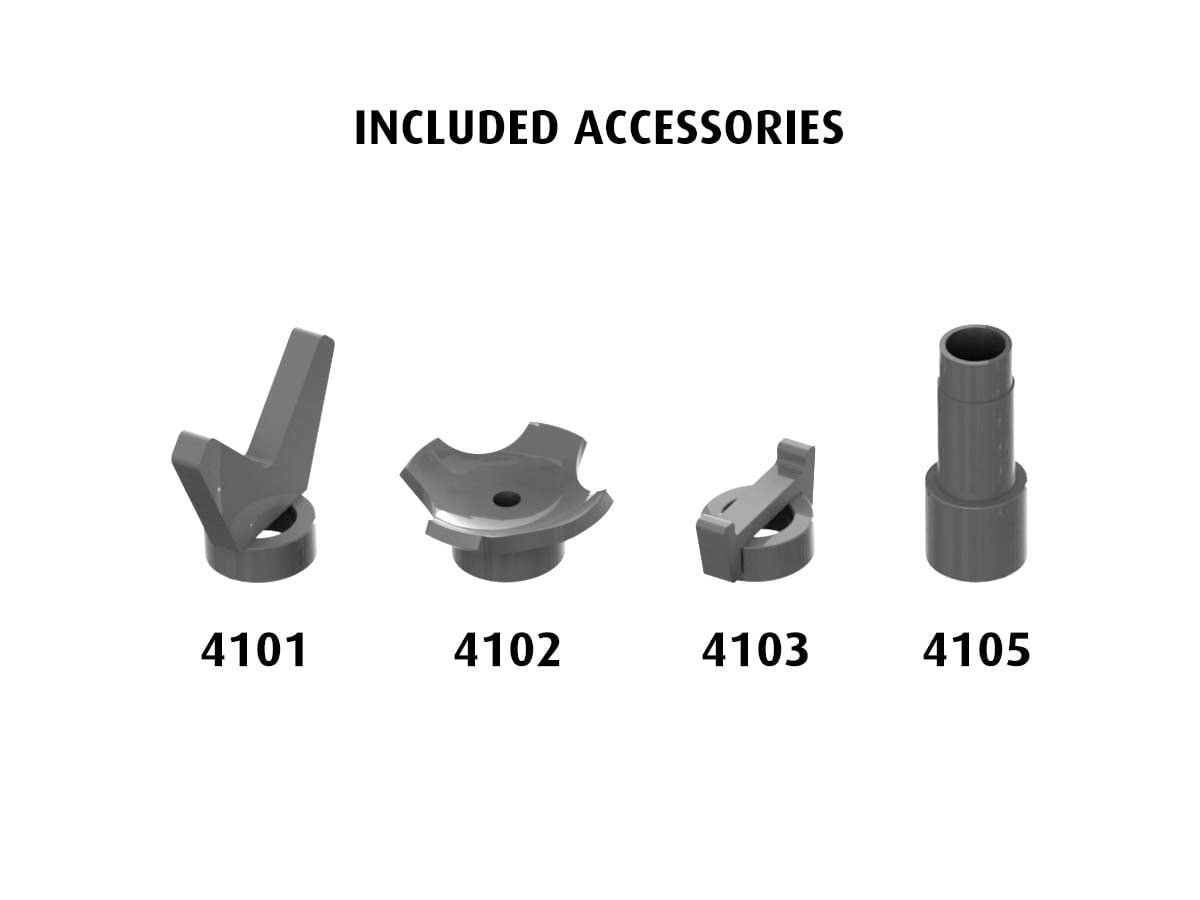

Included Accessories

• 4101 – Qty. 2 – ‘V’ Head – 6.5” (165mm) high
• 4102 – Qty. 2 – Dished Head – 3.5” (89mm) high
• 4103 – Qty. 2 – Chassis Head – 2” (54mm) high
• 4105 – Qty. 2 – Extension Tube – 6” (152mm) high

Supported Military Vehicles

• HEMTT
• * HMMWV (use 12″ pistons – part # WS-1945-12)
• M916 Tractor Truck
• M-920 Tractor Truck (MET)
• * MaxxPro MRV (MRAP)
• FMTV
• * Bradley Fighting Vehicle (BFV)
• M1117 Guardian Armored Security Vehicle
• Medium Tactical Vehicle Replacement (MTVR)

* No Shackle Adapter (Use Included Accessories)
