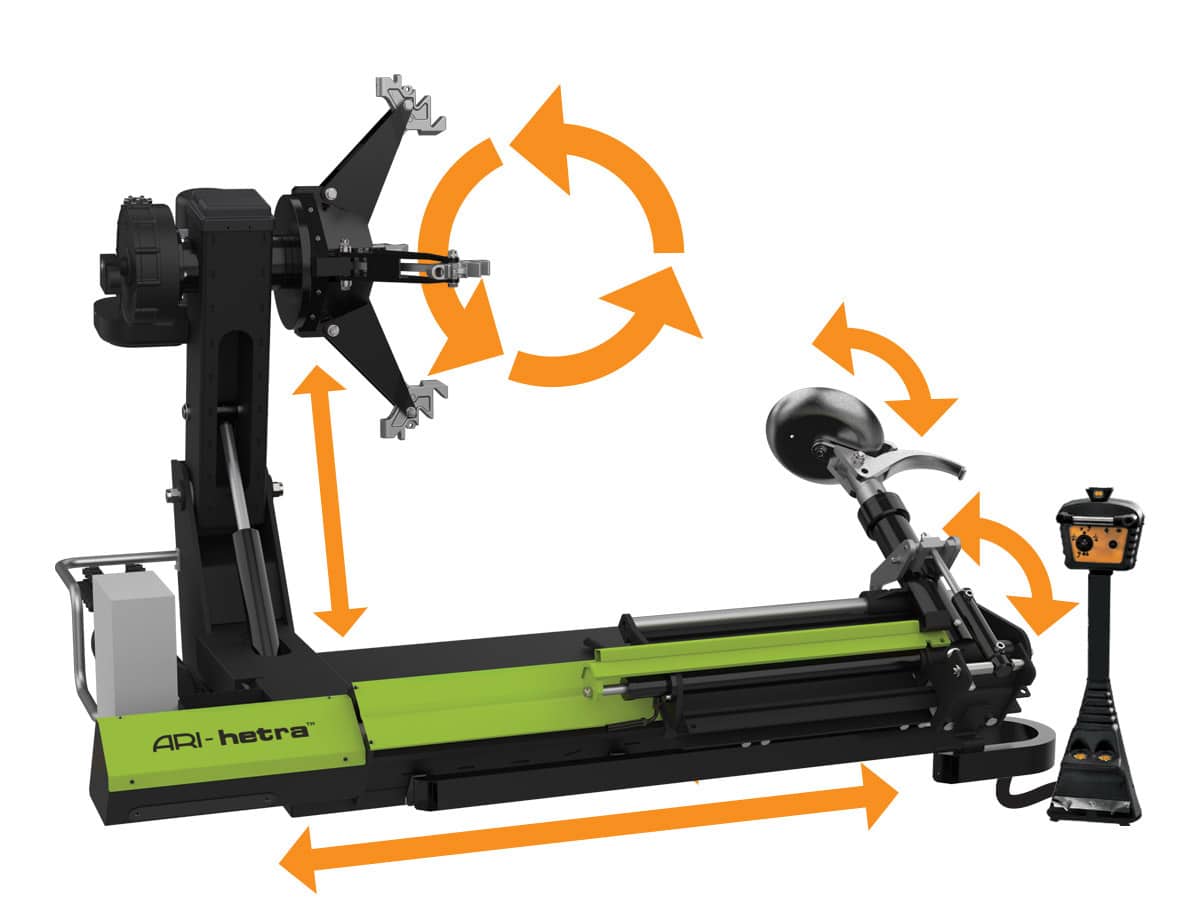

ARI-HETRA’s Model WS-25TC50 Heavy-Duty Tire Changer easily mounts and dismounts truck, bus, and super single tires.
| Rim Diameter | 14 – 42 in. (56 in. w/ ext.) |
| Max Wheel Diameter | 91 in. |
| Max Wheel Width | 52 in. |
| Hydraulic Drive Motor | 3 – 4 HP |
| Max Wheel Weight | 4,410 lbs. |
| Chuck Rotation Speeds | 4.5 – 9 RPM |
| Max Bead Breaker Force | 5,620 lbf. 25,000 N |
| Dimensions (LxWxH) | 93 in. x 74 in. x 57 in. |
| Shipping Weight | 2,000 lbs. |
| Power | 400V, 3-PH, 60 Hz 230V, 3-PH, 60 Hz |
